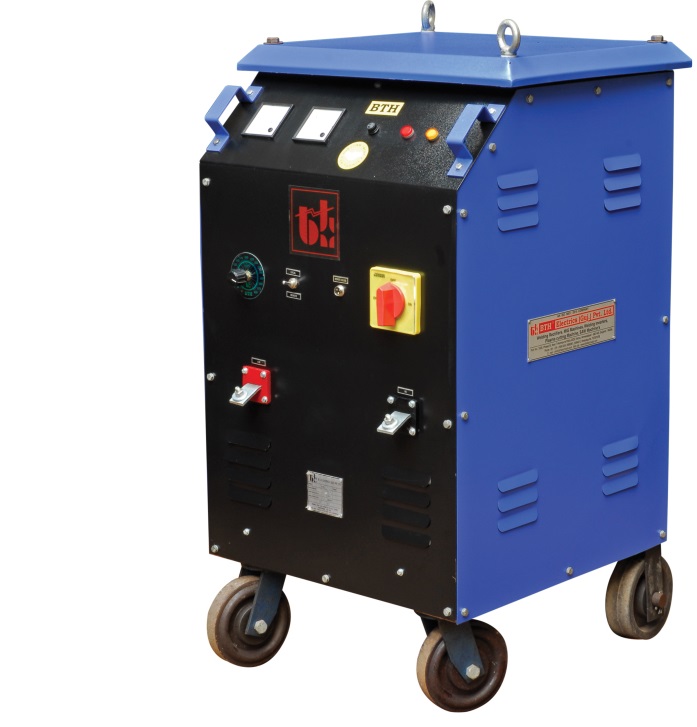

Rectifiers

Description

Welding Power sources designed for smooth dc output. Used for Stick (MMAW) welding and TIG (GTAW) welding.

Applications

(MMAW) General Fabrication, Repair, Maintenance, Structural Steelwork, Process Plant, Shipbuilding, etc.

(GTAW) Suitable for use in mechanized and automated equipment, Automobile, Aerospace, Power Generation, Chemical Plant Equipment, Nuclear Plants, Food processing machinery, etc.

Features

The optimized design of the transductor ensures a smooth & steady arc with minimum spatter.
Full-wave silicon rectifier with excellent welding characteristics.
High open-circuit voltage to accommodate easy arc striking of a wide variety of welding electrodes.
High-quality CRGO laminations ensure very low idle power consumption.
Fully aluminum (F-class)wound with near-perfect design ensures low energy consumption with trouble-free service life.
Robust design with powder coated chassis ensures long life in site conditions also.

Specification

MODEL	BTH 300	BTH 400	BTH 600
INPUT ( ±10%) Supply Voltage	415/440 V, AC	415/440 V, AC	415/440 V, AC
Phase/ Frequency	3 – Phase, 50Hz	3 – Phase, 50Hz	3 – Phase, 50Hz
Type of Cooling	Forced Air	Forced Air	Forced Air
Insulation Class	F/H	F/H	F/H ‘
Primary Current Max. Rated – Single Operator	22 Amps	28 Amps	44 Amps
At Max. Rated KVA- Single Operator	16.5	20	34
Input Cable Section – Single Operator (Cu)	10 mm2	10 mm2	16 mm2
Open Circuit Voltage (Max.)	75 – 85V	75 – 85V	75 – 85V
Welding Cable	50 mm2	50 mm2	95 mm2
Range	5 – 300 Amps	5 – 400 Amps	5-600 Amps
Protection Class	IP 23	IP 23	IP 23
Overload Protection	Thermal	Thermal	Thermal
Max. cont. hand weld current at 60% duty cycle	300 Amps	400 Amps	600 Amps
Max. cont. auto, weld current at 100% duty cycle		300 Amps	400 Amps.
(Approx.) Weight	155 Kg.	160 Kg.	270 Kg.
