Inverter

Victor
Discover
GENESIS
Victor TIG/PULSETIG
Discover TIG
GENESIS TIG/PULSETIG
APOLLO
GOUGING
MAGNUS
LUMINA
ENDEAVOUR

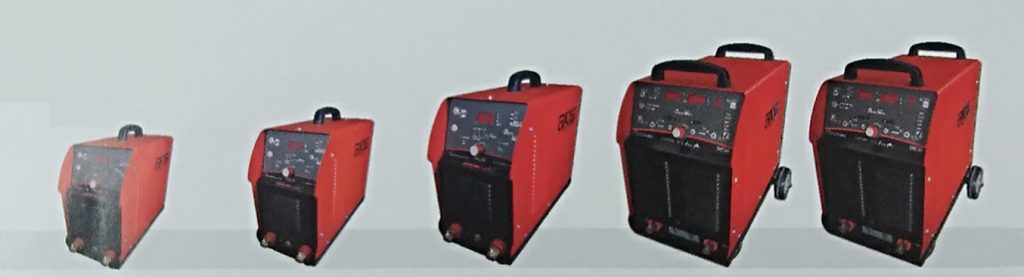

VICTOR



  • Victor Series is an all-new series of Pulse Arc welding power sources.
  • I.G.B.T based switching technology.
  • Pulse Arc facility improves welding of 6010 / 7010 electrodes & vertically up welding.
  • Arc Force and Hot Start are standard features enabling the welder more control over the weld he performs.
  • It has the feature of an optional remote.
  • Class H type of insulation.
  • Forced air type of cooling.
  • It has a sustenance of +- 20% fluctuation in input supply.
  • Voltage Regulatory Device (VRD) to ensure higher welder safety.
  • It has IP21. & IP23** type of Ingress Protection.
  • It has special feature of memory. It can store up to 10 welding parameters.**
  • It has voltage display.**
  • It has special feature of password lock*. where once the machine is locked no tampering of parameters is possible.
  • It has Weld-O-Meter** feature where the total number of hours
    for which welding has been done can be stored and displayed.
  • It has electrode select** option where one can select electrode which he is using and automatic loading of parameters.
  • Victor 250 also available in 1Phase / 2 Phase.
  • OCV is 85Volts for better arc restriking.

* For Victor 200, Victor 250 & Victor 300

** For Victor 400 & Victor 600



Pulsing Features

Pulse Frequency  – 1 – 10 Hz

Pulse Time   – 50%





Technical SpecificationsVictor 200Victor 250Victor 300Victor 400Victor 600
Input Supply Voltage170VAC – 280VAC
1Ph, 50Hz – 60Hz		170VAC – 280VAC
1Ph, SOHz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power6.9 KVA / 8.75 HP9.3 KVA/ 11.8 HP11.9 KVA / 15.2 HP17.8 KVA / 22.7 HP33 KVA / 42HP
Current Range (Amps)10A – 200A10A – 250A10A – 300A10A – 400A10A – 600A
Current @ 60% Duty200A250A300A400A600A
Current @ .96 Duty130A185A205A310A465A
Dimensions (W X L X H)155 X 389 X 238178 X 476 X 375215 X 476 X 362306 X 540 X 444366 X 600 X 570
weight (Kg)912.519.53260





DISCOVER



  • I.G.B.T based switching technology.
  • Digital Ammeter. (Also Voltmeter in Discover 400).
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP21 type of Ingress Protection for better. insulation and protection against all elements of the work environment.
  • Excellent Arc Characteristics over the entire range.
  • TIG ON/OFF switch for basic strike TIG usage.( Except Discover 200DX)
  • Remote Connector for usage with remote.(Except Discover 200DX)
  • Arc Force feature for trouble-free welding.
  • Optional Voltage Regulation Device (VRD) for welder safety.
  • Hot Start Special Feature for Discover 400GIory for excellent weld striking.
  • OCV is 85Volts for better arc restriking.



Technical SpecificationsDiscover 200DxDiscover 250Discover 300Discover 400GloryDiscover 400
Input Supply Voltage170VAC – 280VAC
1Ph, 50Hz – 60Hz		170VAC – 280VAC
1Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power6.5 KVA / 8.25 HP9.3 KVA / 11.8 HP11.9 KVA / 15.2 HP17.8 KVA / 22 HP17.8 KVA / 22 HP
Current Range (Amps)10A – 200A10A – 250A10A – 300A10A – 400A10A – 400A
Current @ 60% Duty200A250A300A400A400A
Current @ 100% Duty130A190A205A250A300A
Dimensions ( W x L x H)145 X 350 X 261 180 X 430 X 315 260 X 515 X 395 290 X 550 X 440 310 X 540 X 470
Weight (Kg)8.317212529

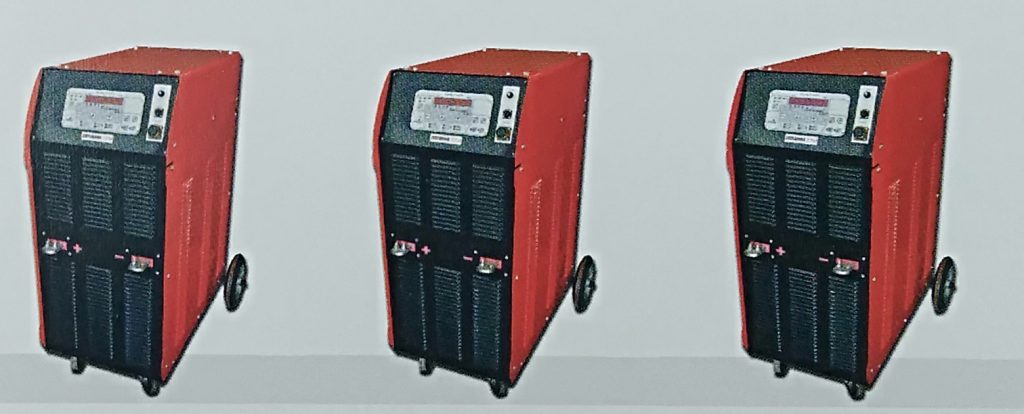

GENSIS



  • Excellent Arc Characteristics over the entire range.
  • I.G.B.T based switching technology.
  • Fan On Demand feature for better and more efficient use of power and longer life of fan.
  • Voltage Regulation Device (VRD) for welder safety.
  • TIG On/Off Switch for switching to basic strike TIG usage.
  • Remote connector for using the machine with remote.
  • Arc Force and Hot Start feature for easy and better quality welding.
  • Stepless Current selection.
  • Digital Ammeter and Voltmeter.
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP23 type of Ingress Protection for better insulation and protection against all elements of work environment.
  • OCV is 85Volts for better arc restriking.







Technical SpecificationsGenesis 400StarGenesis 400HDGenesis 500Genesis 600HD
Input Supply Voltage330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC MIL 3Ph, 50Hz – 60Hz330VAC – 500VAC
3Ph, 50Hz – 60Hz

–

330VAC 500VAC

3Ph, 50Hz – 60Hz

Max Installed Power17.8 KVA / 22.5 HP17.8 KVA / 22.5 HP25 KVA / 31.8 HP33 KVA / 42 HP
Current Range (Amps)10A – 400A10A – 400A10A – 500A10A – 600A
Current @ 60% Duty400A400A500A600A
Current @ 100% Duty308A310A387A465A
Dimensions ( W x I_ x H)300 X 565 X 500330 X 680 X 390420 X 680 X 540420 X 680 X 540
Weight (Kg)38426060

VICTOR TIG/PULSETIG



  • GAS Test Feature, auto OFF after 7 secs, prevents GAS wastage.
  • I.G.B.T based switching technology.
  • Voltage Regulation Device (VRD) for regulation and stability of voltage.
  • Remote connector for using the machine with remote and foot pedal.
  • Arc Force and Hot Start feature for easy and better quality welding.
  • Stepless Voltage selection.
  • Digital Ammeter and Voltmeter.
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP21 type of Ingress Protection for better insulation and protection against all elements of work environment.
  • Indications : Under Voltage (UV), Over Voltage (0V), Phase Loss (SP), Over Temperature (OT) indications for better protection.
  • 2T, 4T/S4T, Spot ( Tack) features for better usability, job maneuverability and welder comfort.
    OCV Is 85Volts for better arc restriking.

TIG Features

  • In Built High Frequency
  • Preflow Gas              –    0-10  sec
  • Postfow Gas             –    0-10  sec
  • Upslope Time          –    0-10  sec
  • Downslope Time    –    0-10  sec

Pulsing Features

Pulse Frequency  – 1 – 10 Hz

Pulse Time   – 10 –  90%







Technical SpecificationsVictor 200 TigVictor 250 TigVictor 300 TigVictor 400 Tig
Input Supply Voltage170VAC – 290VAC
1Ph, 50Hz – 60Hz		170VAC – 290VAC
1Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power6.9 KVA / 8.85HP9.5 KVA / 12.1 HP11.9 KVA / 15.15 HP17 8 KVA / 22.7 HP
Current Range (Amps)10A – 200A10A – 250A10A – 300A10A – 400A
Current @ 60% Duty200A250A300A400A
Current @ 100% Duty130A185A205A310A
Dimensions ( W x L x H)155 X 390 X 240180 X 476 X 275215 X 476 X 362306 X 540 X 444
Weight (Kg)14252935

DISCOVER



  • G.B.T based switching technology.
  • Digital Ammeter and Voltmeter*. (*Only Discover 400)
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP21 type of Ingress Protection for better insulation and protection against all elements of work environment.
  • Excellent Arc Characteristics over the entire range.
  • Remote Connector for usage with remote. (Only 400 Amp Variants )
  • Arc Force** feature for trouble free welding.
  • Optional Voltage Regulation Device (VRD) for welder safety.
  • Hot Start Special Feature for Discover 400Glory for excellent weld striking.
  • OCV is 85Volts for better arc restriking.

  ** Not in Discover 200Tig



TIG Features

  • In Built High Frequency Unit    –   0-10  sec
  • Preflow Gas                                    –   0-10  sec
  • Postfow Gas                                   –   0-10  sec
  • Upslope Time                                –   0-10  sec







Technical SpecificationsDiscover 200TigDiscover 400Glory TigDiscover 400Tig
Input Supply Voltage170VAC- 290VAC
1Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power6.9 KVA / 8.85 HP17.8 KVA / 22.65 HP17.8 KVA / 22.65 HP
Current Range (Amps)10A – 200A10A – 400A10A – 400A
Current @ 60% Duty200A400A400A
Current @ 100% Duty130A250A300A
Dimensions ( W x L x H)160 X 380 X 360290 X 550 X 440310 X 540 X 470
Weight (Kg)9.53135

GENESIS TIG/PULSETIG



  • Excellent Arc Characteristics over the entire range.
  • I.G.B.T based switching technology.
  • Fan On Demand feature for better and more efficient use of power and longer life of fan.
  • Voltage Regulation Device (VRD) for welder safety.
  • Remote connector for using the machine with remote.
  • Arc Force and Hot Start feature for easy and better quality welding.
  • Stepless Voltage selection.
  • Digital Ammeter and Voltmeter.
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP23 type of Ingress Protection for better
  • insulation and protection against all elements of work environment.
  • OCV is 85Volts for better arc restriking.

TIG Features

  • In Built High Frequency Unit.
  • Preflow Gas           –   0- 10 sec
  • Postfow Gas           –  0- 10 sec
  • Upslope Time        –  0 – 10 sec
  • Downslope Time   –  0- 10 sec

Pulsing Features

  • Pulse Frequency — 1 – 10 Hz
  • Pulse Time   – 10 – 90 %





Technical SpecificationsGenesis 400HD TigGenesis 500HD TigGenesis 600HD Tig
Input Supply Voltage330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power17.8 KVA / 22.65 HP25 KVA / 31.8 HP33 KVA / 42 HP
Current Range (Amps)10A – 400A10A – 500A10A – 600A
Current @ 60% Duty400A500A600A
Current @ 100% Duty310A387A465A
Dimensions ( W x L x H)330 X 680 X 390420 X 680 X 540420 X 680 X 540
Weight (Kg)476065

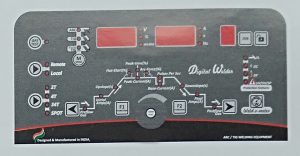

APOLLO



  • Weld – 0 – Meter feature helps you know active welding hours. A great feature to track welding hours.
  • I.G.B.T based switching technology.
  • 10 programmable memories to store weld cycle parameters.
  • Autosave feature prevents data loss.
  • Lock feature prevents parameter changes by unauthorized personnel, saving rework and improving safety. 3 Digit password setting.
  • Gas test feature, Auto Off after 7 secs, prevents gas wastage.
  • 2T, 4T, Special 4T (S4T), Spot (Tack) features for better usability, job
  • performance and welder comfort.
  • Panel, Remote and Foot pedal based operation.
  • Safety : Provided with Voltage Regulatory Device (VRD) to protect
  • from shocks. Brings down OCV to 12.5V.( Welder safety ensured)
  • Under Voltage (UV), Over Voltage (OV), Phase Loss (SP), Over
  • Temperature (OT), Over Current (OC), Water Flow (FL) errors
  • included under protection features.
  • Fan On Demand (FOD) : Cooling Fan switches On only when required.
  • It increases life of fan and saves electricity.
  • OCV is 85VoIts for better arc restriking.

TIG Features

  • In Built High Frequency Unit.
  • Preflow Gas           –   0- 25 sec
  • Postfow Gas           –  0- 25 sec
  • Upslope Time        –  0 – 25 sec
  • Downslope Time   –  0- 25 sec

Pulsing Features

  • Pulse Frequency — 1 – 10 Hz
  • Pulse Time    – 10 – 90 %





Technical SpecificationsApollo 200Apollo 270Apollo 400Apollo 600
Input Supply Voltage

170          290 VAC VAC –

1Ph, 50Hz – 60Hz

330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power6.9 KVA / 8.85HP12 KVA / 15.25 HP17.8 KVA / 22.65 HP33 KVA / 42 HP
Current Range (Amps)10A – 200A10A – 270A10A – 400A10A – 600A
Current @ 60% Duty200A270A400A600A
Current @ 100% Duty130A200A310A465A
Dimensions ( W x L x H)155 X 390 X 240210 X 460 X 401310 X 545 X 595370 X 625 X 690
Weight (Kg)14253257

GOUGING



  • Excellent Arc Characteristics over the entire range.
  • I.G.B.T based switching technology.
  • Voltage Regulation Device (VRD) for higher welder safety.
  • Remote connector for using the machine with remote.
  • Arc Force and Hot Start feature for easy and better quality welding.
  • Stepless Voltage selection.
  • Digital Ammeter and Voltmeter.
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP21 type of Ingress Protection for better insulation and protection against all elements of work environment.
  • OCV is 95Volts to 105Volts for better arc restriking.





Technical SpecificationsGenesis 600HDGenesis 800Genesis 1000Genesis 1200
Input Supply Voltage330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power33 KVA / 42 HP50.6 KVA / 64.5 HP51 KVA / 65HP51 KVA / 65 HP
Current Range (Amps)20A – 600A30A – 800A30A -1000A30A – 1200A
Current @ 60% Duty600A800A1000A1200A
Current @ 100% Duty465A600A775A930A
Dimensions ( W x L x H)420 X 680 X 540670 X 780 X 915460 X 1125 X 945460 X 1125 X 945
Weight (Kg)60130182198

MAGNUS



  • Excellent Arc Characteristics over the entire range.
  • Stepless Voltage selection.
  • Digital Ammeter and Voltmeter.
  • Forced Air cooling for longer unit life.
  • Class H insulation and IP 21/23 type of Ingress Protection for better insulation and protection against all elements of the work environment.
  • I.G.B.T based switching technology.
  • Fan On-Demand feature for better and more efficient use of power and longer life of fan.
  • OCV is 65Volts for better arc restriking.



Technical SpecificationsMagnus 200Magnus 250Magnus 400Magnus 500Magnus 600
Input Supply Voltage170VAC – 280VAC
1Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power5.94KVA / 7.6 HP8.2 KVA / 10.5 HP16.8 KVA / 20.25 HP24.15 KVA / 30.75 HP32.69 KVA / 41.7 HP
Current Range (Amps)10A – 200A10A – 250A10A – 400A10A – 500A10A – 600A
Current @ 60% Duty200A250A400A500A600A
Current @ 100% Duty130A190A310A387A465A
Dimensions ( W xl. x H)310 X 450 X 480310 X 450 X 480300 X 565 X 500300 X 665 X 500300 X 665 X 500
Weight (Kg)2538455359

LUMINA

  • Digital Ammeter and Voltmeter.
  • Class H insulation and IP23/21 type of Ingress Protection for better insulation and protection against all elements of work environment.
  • I.G.B.T based switching technology.
  • Fan On Demand feature for better and more efficient use of power and longer life of fan.
  • Arc Force / Inductance Control helps control the weldarc.
  • Anti-Stick / Burn-Back prevents the torch from sticking to the job.
  • Crater Current and Crater Voltage helps the welder to control the crater parameters.
  • 2T, 4T, S4T and Spot modes allow welder to use the torch as needed.
  • 10 Memories feature enables the storage of 10 parameter settings.
  • Password Lock feature prevents parameter tampering.
  • Weld-O-Meter feature enables the machine to show how many hours welding has been done on the machine.
  • Gas Test feature helps to release some gas to clear the arc area.
  • Remote operation is possible. • OCV is 65Volts for better arc restriking.

Pulsing Features

  • Pulse Frequency -1- 50 Hz
  • Pulse Time 10 – 90%
  • Preflow Gas 0 – 25 sec
  • Postfow Gas 0 – 25 sec
  • Upslope Time 0 – 25 sec
  • Downslope Time – 0 – 25 sec

Technical SpecificationsLumina 200Lumina 250Lumina 400Lumina 500Lumina 600
Input Supply Voltage170VAC – 280VAC
1Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz		330VAC – 500VAC
3Ph, 50Hz – 60Hz
Max Installed Power5.94 KVA / 7.6 HP8.2 KVA / 10.5 HP16.8 KVA / 34.65 HP24.15 KVA / 30.75 HP32.69 KVA / 41.65 HP

Current Range (Amps)

_

10A – 200A10A – 250A10A – 400A10A – 500A10A – 600A
Current @ 60% Duty200A250A400A500A600A
Current @ 100% Duty130A190A310A387A465A
Dimensions ( W x L x H)210 X 460 X 401210 X 460 X 401310 X 545 X 595370 X 625 XX 690370 X 625 X 690
Weight (Kg)1619325257

ENDEAVOUR

  • Endeavour DC Multiprocess welder offers 1000A of smooth DC output, combining pure welding power with multi-process flexibility for semi-automation and automatic welding.
  • I.G.B.T based switching technology.
  • Excellent arc characteristics for low and high amperage submerged arc welding procedures.
  • Internal components including windings, rectifiers and circuit boards are coated to protect against the effects of moisture and corrosion.
  • On Load Power consumption upto 30% lesser than conventional welding machines.
  • Designed to work under wide voltage fluctuations, protected against Over Voltage, Under Voltage, Over Heating with indication.
  • Digital Display for voltmeter and ammeter.
  • Forced Air cooling system for maintaining proper temperature.
  • Class H and IP21 insulation.
  • OCV is 65Volts for better arc restriking.



Technical Specifications

Endeavour 800

Endeavour 1000

Endeavour 1200

Input Supply Voltage

330VAC – 500VAC
3Ph, 50Hz – 60Hz

330VAC – SOOVAC
3Ph, 50Hz – 60Hz

330VAC – 500VAC
3Ph, 50Hz – 60Hz

Max Installed Power

53.5 KVA / 68.15 HP

53.5 KVA / 68.15 HP

53.5 KVA / 68.15 HP

Current Range (Amps)

50A – 800A

50A – 1000A

50A – 1200A

Current @ 60% Duty

800A

1000A

1200A

Current @ 100% Duty

620A

775A

930A

Dimensions (WxLxH)

670 X 780 X 915

750 X 970 X 1075

750 X 970 X 1075

Weight (Kg)

135

214

240

error:
