Submerged ARC Welding Equipments

High Lights

  • Simple operation
  • Rugged and robust design
  • No break down
  • High efficiency
  • Minimum maintenance
  • Unmatched welding performance
  • Most suitable for automatic welding

Equipment Consist Of

  • Thyristorised Power source

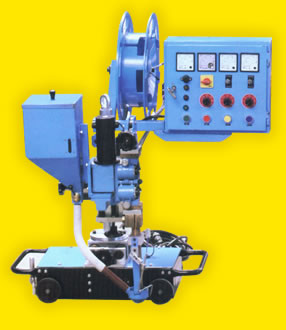

  • Carriage mounted / Boom mounted Welding head
  • Control Panel
  • Inter connection -10 mtrs. long
  • Set of spanner

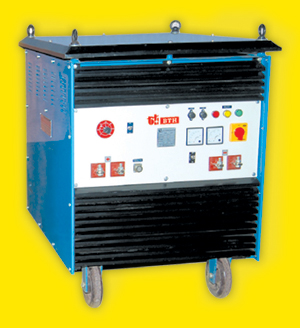

Power Source

  • Content Voltage / Constant Current Power Source
  • Thyristorised controlled.
  • Fitted with Amps & Volt meter on control panel
  • Remote control facility provided (optional)
  • Due to built-in voltage stabilizing facility no effect of input supply fluctuation on wire feed, motor speed & output voltage.




Technical Data :

MODEL

BTH SA-600 BTH SA-800 BTH SA-1000 BTH SA-1200

INPUT
Supply Voltage

380 - 440 V

380 - 440 V

380 - 440 V

380 - 440 V

Phase

3 - Phase

3 - Phase

3 - Phase

3 - Phase

Type of Cooling

Forced Air

Forced Air

Forced Air

Forced Air

Insulation Class

H/F

H/F

H/F

H/F

Primary Current Max. Rated

40 Amps

55 Amps

70 Amps

83 Amps

KVA

31

42

52

64

Welding Current

600 Amps

800 Amps

1000 Amps

1200 Amps

Open Circuit Voltage (setting)

16-52 V

16-52 V

16-52 V

16-52 V

Welding Cable Sec. (Cu)

95 mm2

110 mm2

120 mm2

120 mm2
