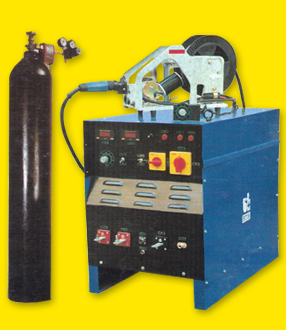

Light weight feeder with quick change over mechanism
We offer 3 in 1 facility i.e. MMA / TIG / MIG in single power source.
Equipments
Power source (100% copper wound)
Wire feeder
Torch
Flow meter
Pressure regulator
Gas pre heater
Remote for voltage and wire feeder setting
100% Copper/ Aluminum
Technical Specifications
Confirms to IS 7931
Model
BTH 300
BTH 400
BTH 600
Supply voltage
380/440 V, AC
380/440 V, AC
380/440 V, AC
Frequency
50Hz
50Hz
50Hz
Phase
3 - phase
3 – phase
3 - phase
Open circuit voltage (max.)
18 – 44 V
18 – 52 V
18 – 58 V
Open circuit voltage (3 in 1 machine)
90 V, DC
90 V, DC
90 V, DC
Welding current range Amps
50-250 Amps
70-400 Amps
100-600 Amps
Welding current at 60% duty cycle
250 Amps
400 Amps
600 Amps
Welding current at 100% duty cycle
150 Amps
250 Amps
360 Amps
Output rating KVA max.
11 KVA
21 KVA
34 KVA
Cable section
16 mm
222 mm
235 mm
Permissible wire diameter (mm)
0.8 – 1.2 mm
0.8 – 1.6 mm
0.8 – 2.4 mm
Insulation class
H
H
H
BTH provides a comprehensive range of arc equipment, consumables and accessories for all the welding processes, viz. MMAW, GMAW, GTAW, plasma arc cutting and gas equipment for welding & cutting. BTH has a highly experienced and qualified staff for rendering technical services to the users.
